COVVI Hand Components
In addition to developing the COVVI Hand, we also offer extra products and accessories so you have everything needed to get you up and running with your COVVI prosthetic device. This includes our power supply module, control panel, lamination ring, wall charger and more.
All of the components have been designed in-house by our engineering team and work specifically with the COVVI Hand in order to deliver maximum efficiency from the device. This allows the clinicians and users alike to ensure that the new, COVVI Hand can be set up straight out of the box! We also offer most of these components in various lengths, sizes and outputs to suit your specific needs.

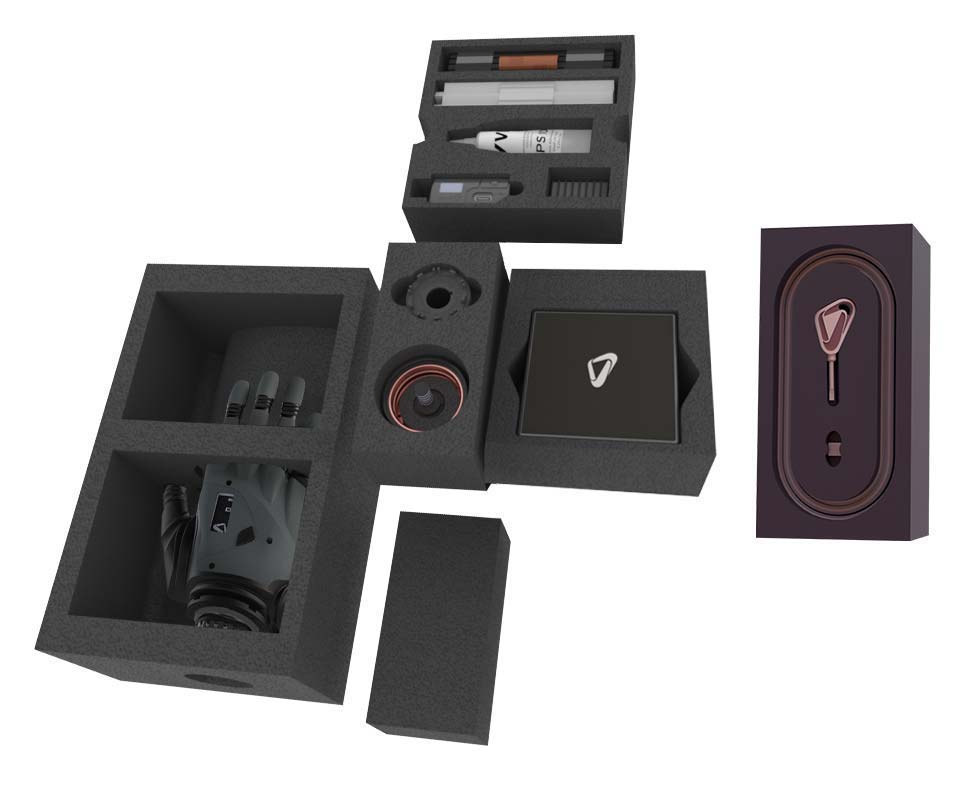

COVVI Product Range Overview
Click the icons for more information
CCOUP Coupling Piece
CAXCOR Coaxial Core & CLAMRG-## Lamination Ring
Control Panel
The COVVI Hand
COVPS-1600 (Prismatic)
COVPS-2600 (Cylindrical)
COVSWC Wall Charger
Gain Adjuster & CELCAB-### Electrode Cables
Powering The COVVI Hand
At COVVI we know that keeping prosthetic devices charged throughout the day can be a challenge, we also understand the fatigue caused by carrying large bulky battery systems all day. We have coupled our Power Supply with some extremely slim batteries which fit within the socket avoiding visible lumps on the outer socket.
With a system weight of 84 grams, we have market-leading power density which will keep the user powered up all day, but if they do find themselves running short on power, they have the convenience of USB-C charging on the go. The COVVI Power Supply is even splash-resistant and tested to IP44.
We also offer a high-capacity version which is based on 2 cylindrical cells delivering 2600mAh with a system weight of 130 grams. This system is ideal for users who have a short residual limb. The low weight version of the Power Supply is 1 battery with 4 individual cells joined by a web which allows the system to follow the contours of the inside surface of the prosthetic socket. This system is ideal for users with a long, residual limb.
The Power Supply
Click the icons for more information
Display Screen
Battery Connections
Battery Web
1600mAh Option
Battery Cell
Power Button
2600mAh Option
USB-C Charge Point
2-pin Output Power Connector to EQD
The Control Panel
Another crucial component of our power supply system is our Control Panel, which has been designed to be incredibly compact, while also boosted a wide range of useful features. This includes a USB-C charge socket, on/off button, and a screen to provide accurate power levels and other information.
Our system only uses the two batteries, which connect directly to the Control Panel without the need for an internal connecter. This innovative setup also ensures that the total weight has been kept as low as possible.
